UV 330W
carnation

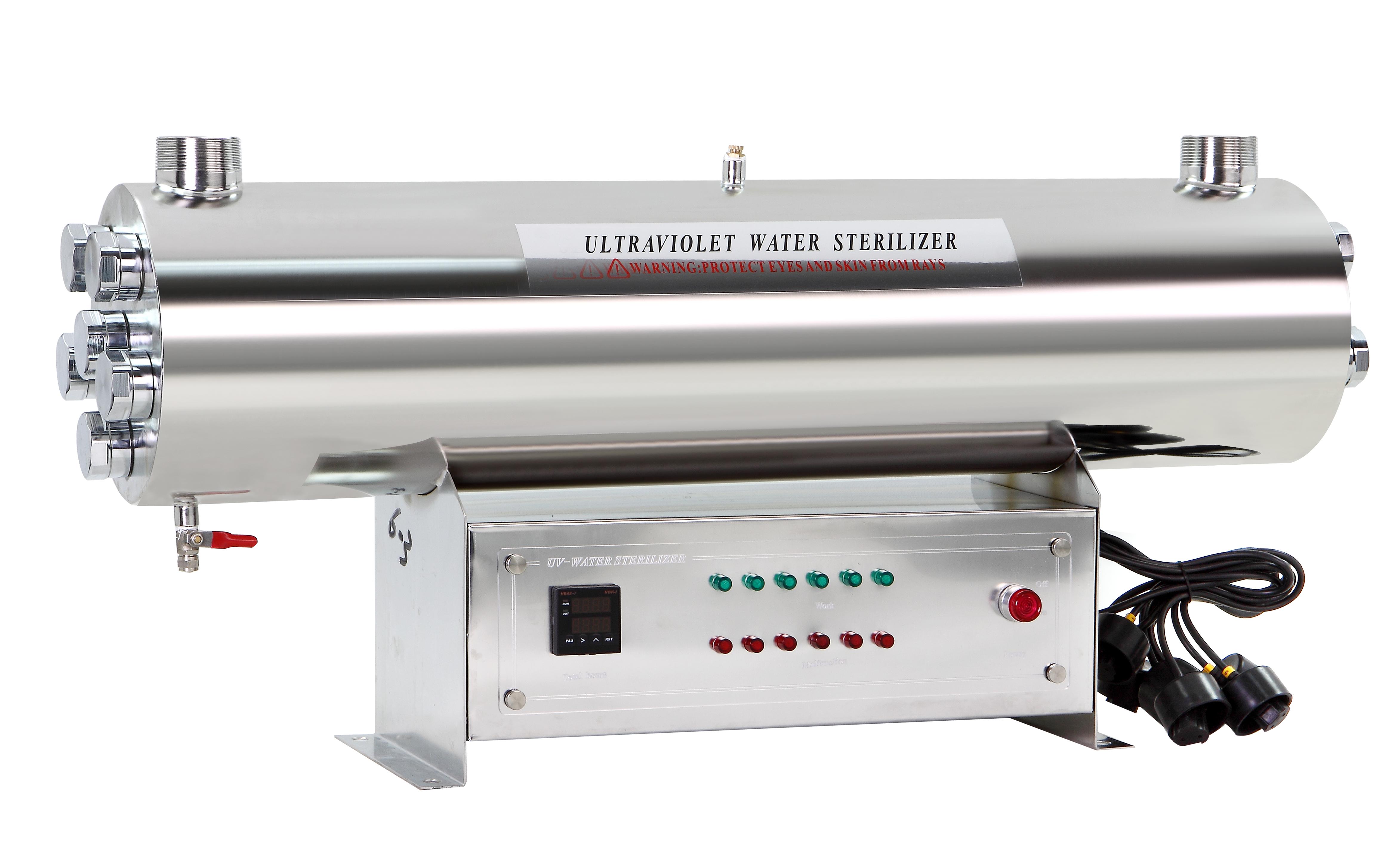

UV330W STERILIZER standard LIST
Type | UV330W | ||
A | Pure water | 16.3t/h/72GPM | |
B | Fountain | 13t/h/57.6GPM | |
Lamp rated life（hrs） | 8000 | ||
UV dosage （uW-sec/cm2） | >30000 | ||
Electricity unit | Volts | 100 or 240 | |
Hz | 50/60 | ||
Watts | 330W | ||
Lamp failure Warning system | Visible | LED | |
Audible | Alarm | ||
Timer | YES | ||
No. of UV lamp needal | 6×55w | ||
Overall dimension（mm） | Ø220×970×422 | ||
Shell material （stainless） | 304# | ||
Inlet/outlet muzzle size（npt） | 2″~2.5″ | ||
Type of lamp holder | G13 | ||
suitable ballast type | XH-UV-3 | ||
Max operating pressure | 8kg | ||
UV lamp MAKER | PHILIPS POLAND | ||
QTY（PCS） | 1 | ||
N.W.（KG） | 22.48 | ||
G.W.（KG） | 24.98 | ||
CARTON MEASUREMENT（CBM） | 101cm×28cm×48.5cm | ||
