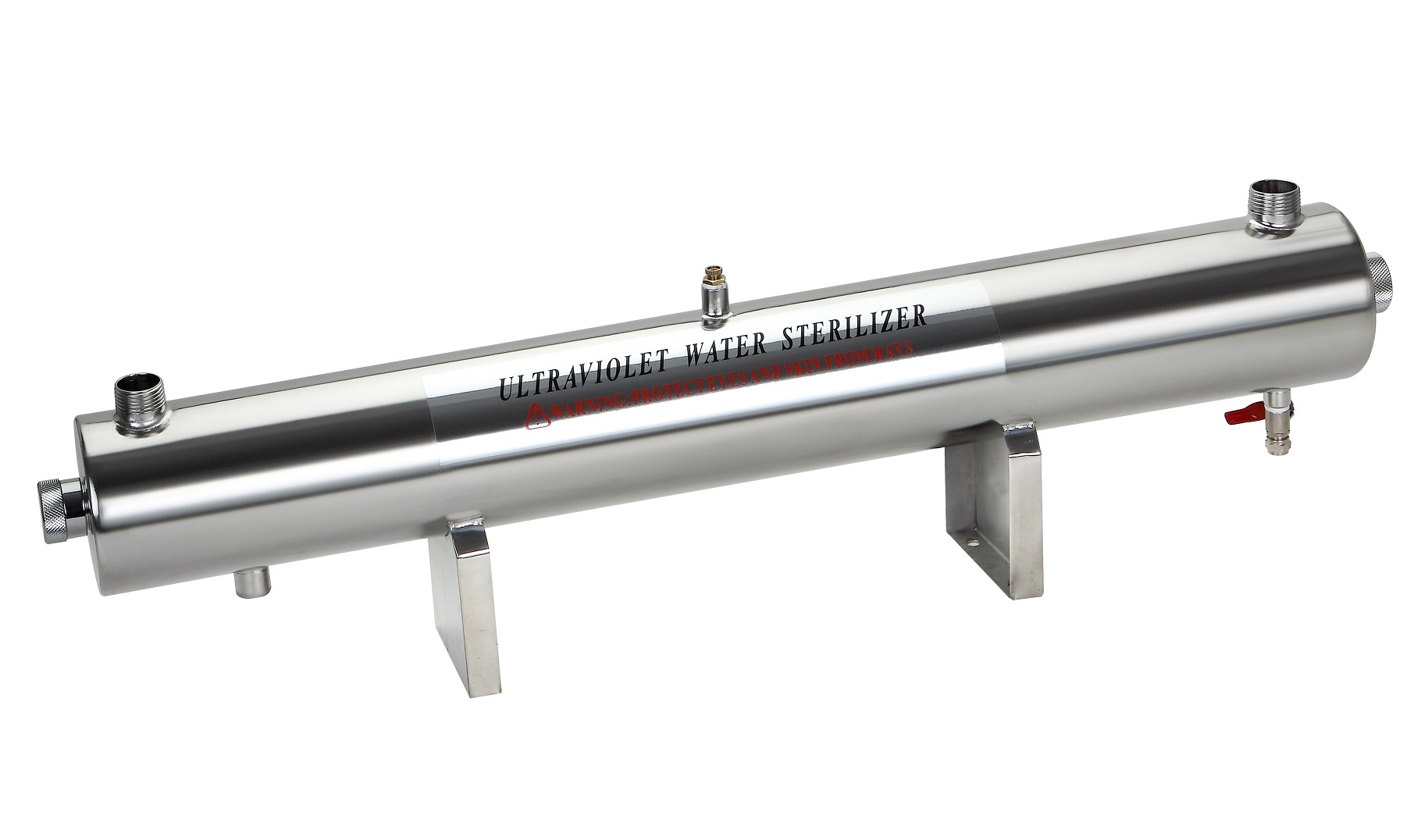

UV75W-T
Yake/Carnation
UV75W-T STERILIZER standard LIST
Type | UV25W-TS | ||
A | Pure water | 5t/h/22GPM | |
B | drinking water | 4t/h/17.6GPM | |
Lamp rated life（hrs） | 8000 | ||
UV dosage （uW-sec/cm2） | >30000 | ||
Electricity unit | Volts | 100 or 240 | |
Hz | 50/60 | ||
Watts | 75W | ||
Lamp failure Warning system | Visible | LED | |
Audible | Alarm | ||
Timer | YES | ||
No. of UV lamp needal | 1×75W | ||
Overall dimension（mm） | Ø108×920 | ||
Shell material （stainless） | 304# | ||
Inlet/outlet muzzle size（npt） | 1″~1.5″ | ||
Type of lamp holder | G13 | ||
suitable ballast type | XH-UV-2 | ||
Max operating pressure | 7kg | ||
UV lamp MAKER | PHILIPS POLAND | ||
QTY（PCS） | 1 | ||
N.W.（KG） | 7.5 | ||
G.W.（KG） | 8.5 | ||
