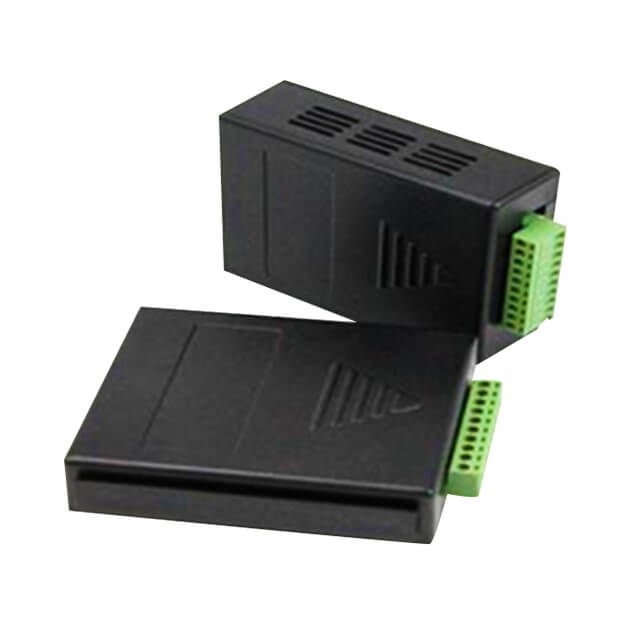

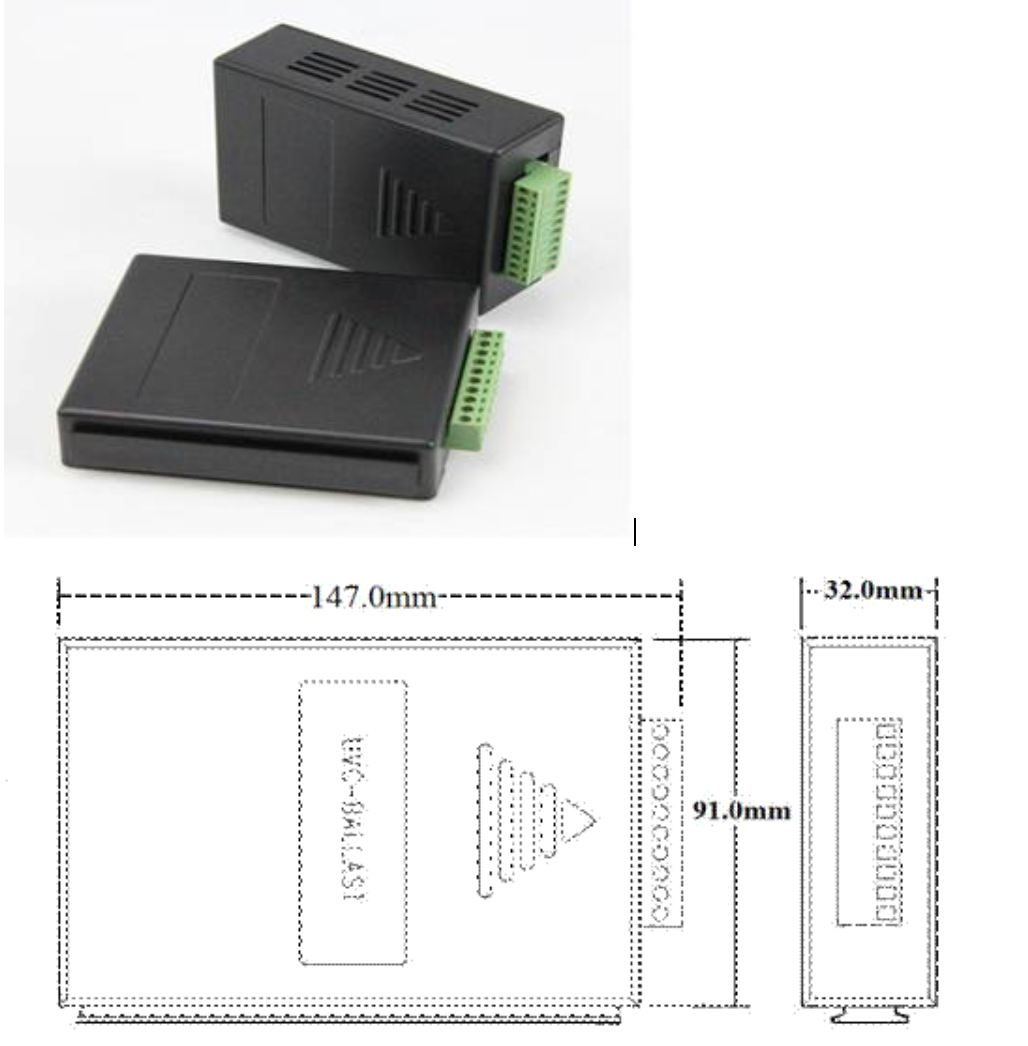

Enclosure of Cabinet Type Ballast XH-ZLQ-5: (It is in design and trial production. The enclosure is also in design. It is estimated to finish by the second half of 2011.)
Enclosure of cabinet type ballast XH-ZLQ-5 fit ballast circuit board in specifications listed below:
| PCB | VOLTAGE | FREQUENCY | POWER | PF | ATHD | Ta | Tc | CREST FACTOR | APPROVAL | ALARM |
| XH-6 | 120VAC | 50/60Hz | 75W | 0.98 | ≤15% | -15-55℃ | 70℃ | ＜1.7 | NO | LIGHT |
| 230VAC | 50/60Hz | 75W 155W | 0.98 | ≤15% | -15-55℃ | 70℃ | ＜1.7 |
Bare board type ballast used on big machine is applicable to the cabinet type ballast produced before April, 2011.
| PCB< | VOLTAGE | FREQUENCY | POWER | PF | ATHD | Ta | Tc | CREST FACTOR | APPROVAL | ALARM |
| XH-3-F | 120VAC | 50/60Hz | 30W | 0.55 | ≤130% | -15-55℃ | 70℃ | ＜1.7 | NO | LIGHT |
|
|
|
|
|
|
|
|
|
