| Quantity: | |
|---|---|
XH-UV-0
Yake/Carnation

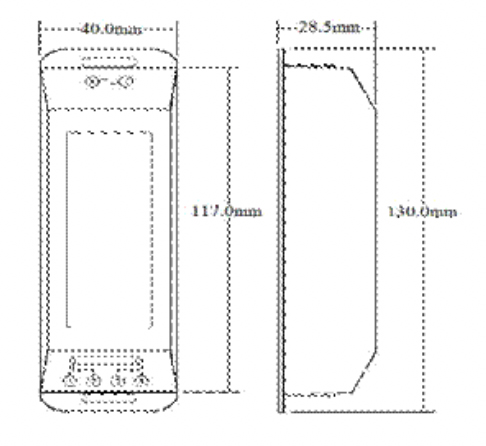

Enclosure of Ballast XH-ZLQ-1: |
|
Enclosure of ballast XH-UV-0 fits the circuit boards in specifications listed below. And it is suitable for ship shape power switch. Details are as below:
PCB | VOLTAGE | FREQUENCY | POWER | PF | ATHD | Ta | Tc | CREST FACTOR | APPROVAL | ALARM |
XH-DC-0 | 12VDC | / | 4W 6W | / | / | 0-55℃ | 70℃ | ＜1.7 | NO | NO |
24VDC | ||||||||||
34VDC | ||||||||||
XH-0 | 120VAC | 50/60Hz | 4W 6W | 0.55 | ≤130% | -15-55℃ | 70℃ | ＜1.7 | NO | NO |
230VAC | 50/60Hz | 4W 6W 11W 16w | 0.55 | ≤130% | -15-55℃ | 70℃ | ＜1.7 | CE | NO | |
|
Enclosure of Ballast XH-ZLQ-1: |
|
Enclosure of ballast XH-UV-0 fits the circuit boards in specifications listed below. And it is suitable for ship shape power switch. Details are as below:
PCB | VOLTAGE | FREQUENCY | POWER | PF | ATHD | Ta | Tc | CREST FACTOR | APPROVAL | ALARM |
XH-DC-0 | 12VDC | / | 4W 6W | / | / | 0-55℃ | 70℃ | ＜1.7 | NO | NO |
24VDC | ||||||||||
34VDC | ||||||||||
XH-0 | 120VAC | 50/60Hz | 4W 6W | 0.55 | ≤130% | -15-55℃ | 70℃ | ＜1.7 | NO | NO |
230VAC | 50/60Hz | 4W 6W 11W 16w | 0.55 | ≤130% | -15-55℃ | 70℃ | ＜1.7 | CE | NO | |
|
