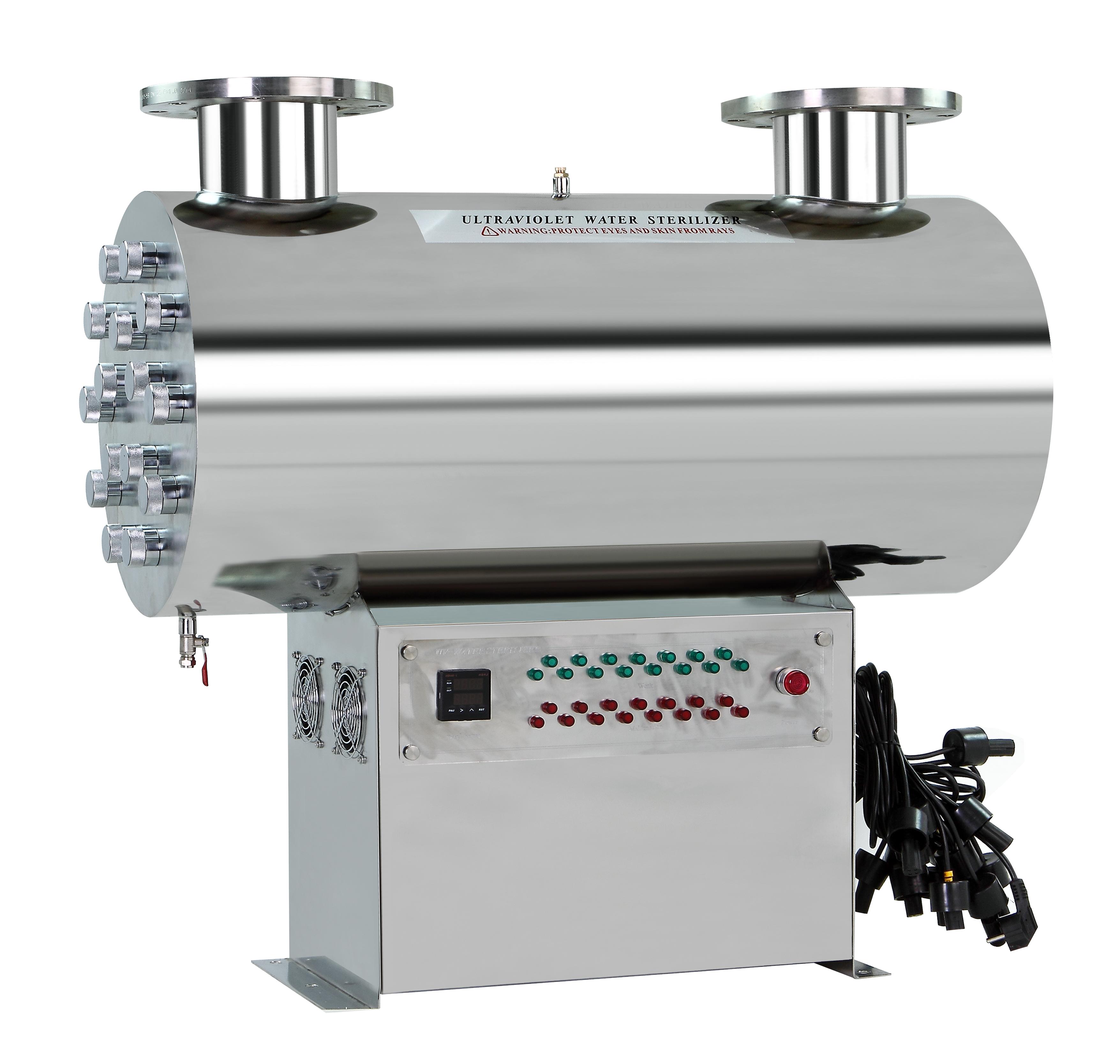

UV 1125W
Yake/Carnation
UV1125W STERILIZER standard LIST
Type | UV1125W | ||
A | Pure water | 75t/h | |
B | Fountain | 60t/h | |
Lamp rated life（hrs） | 9000 | ||
UV dosage （uW-sec/cm2） | >30000 | ||
Electricity unit | Volts | 100 or 240 | |
Hz | 50/60 | ||
Watts | 1125W | ||
Lamp failure Warning system | Visible | LED | |
Audible | Alarm | ||
Timer | YES | ||
No. of UV lamp needal | 15×75w | ||
Overall dimension（mm） | Ø410×920×880 | ||
Shell material （stainless） | 304# | ||
Inlet/outlet muzzle size（npt） | DN125 Flange | ||
Type of lamp holder | T5 4P-SE | ||
Max operating pressure | 8kg | ||
suitable ballast type | XH-UV-3 or XH-UV-6 | ||
UV lamp MAKER | PHILIPS POLAND | ||
QTY（PCS） | 1 | ||
N.W.（KG） | 85 | ||
G.W.（KG） | 93 | ||
CARTON MEASUREMENT（CBM） | 97cm×47cm×89cm | ||
UV1125W STERILIZER standard LIST
Type | UV1125W | ||
A | Pure water | 75t/h | |
B | Fountain | 60t/h | |
Lamp rated life（hrs） | 9000 | ||
UV dosage （uW-sec/cm2） | >30000 | ||
Electricity unit | Volts | 100 or 240 | |
Hz | 50/60 | ||
Watts | 1125W | ||
Lamp failure Warning system | Visible | LED | |
Audible | Alarm | ||
Timer | YES | ||
No. of UV lamp needal | 15×75w | ||
Overall dimension（mm） | Ø410×920×880 | ||
Shell material （stainless） | 304# | ||
Inlet/outlet muzzle size（npt） | DN125 Flange | ||
Type of lamp holder | T5 4P-SE | ||
Max operating pressure | 8kg | ||
suitable ballast type | XH-UV-3 or XH-UV-6 | ||
UV lamp MAKER | PHILIPS POLAND | ||
QTY（PCS） | 1 | ||
N.W.（KG） | 85 | ||
G.W.（KG） | 93 | ||
CARTON MEASUREMENT（CBM） | 97cm×47cm×89cm | ||
